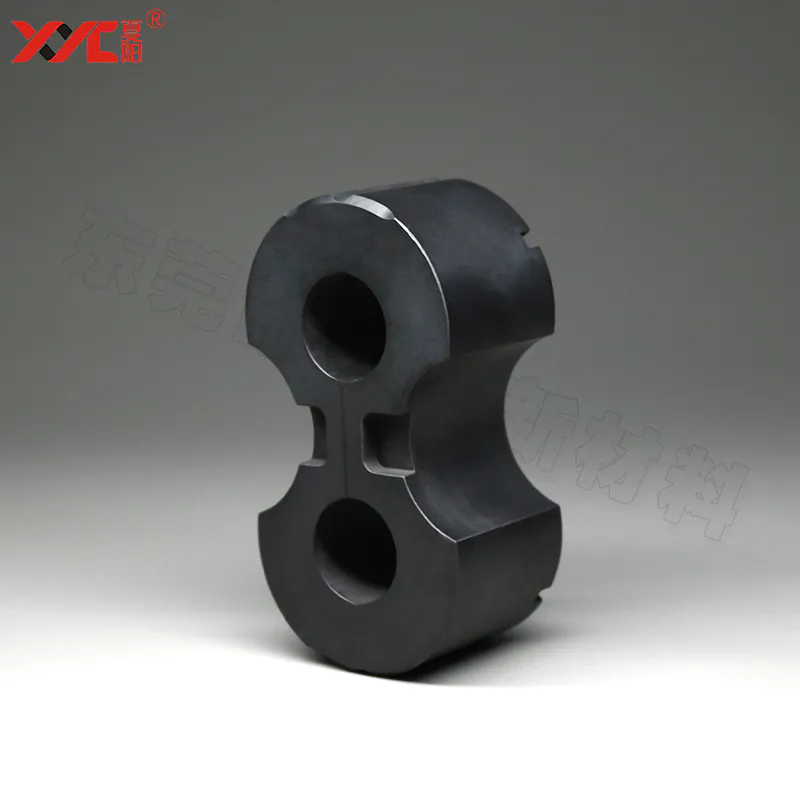

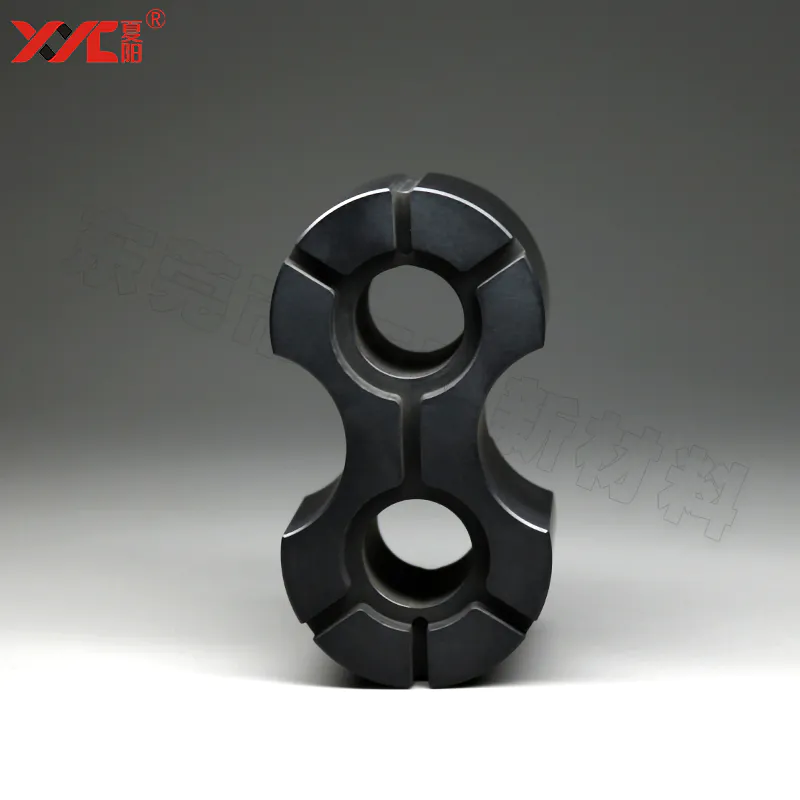

Silicon Nitride Ceramic Dual-Slot Fixture | High-Precision Wafer Handling Component | Semiconductor Industry
Product Overview
This high-performance silicon nitride ceramic dual-slot fixture is engineered for secure, damage-free handling of semiconductor wafers in ultra-clean manufacturing environments. Made from high-purity silicon nitride, it delivers exceptional wear resistance, dimensional stability, and chemical inertness, ensuring reliable performance in high-cycle, high-precision applications.
As a critical component in wafer transfer systems, it minimizes wafer contamination and breakage, directly enhancing the yield and efficiency of your semiconductor production lines.
Technical Support & Services
- Provide material selection technical consultation and solutions
- Custom processing according to customer requirements with precision up to ±0.01mm
- Provide product inspection reports and material certification
Product Detailed Specifications
Core Technical Advantages
✅ Ultra-Precision Machining
CNC-machined to ±0.01mm tolerance, ensuring precise alignment and secure clamping of semiconductor wafers.
✅ Superior Wear & Corrosion Resistance
Resists abrasive wear and chemical corrosion, outlasting metal fixtures by 8–12x in harsh operating conditions.
✅ Chemical Inertness & Cleanliness
Meets SEMI standards for ultra-clean environments, minimizing particle contamination of wafers.
✅ High-Temperature Stability
Performs reliably at temperatures up to 1400°C, suitable for high-heat processes in semiconductor manufacturing.
Technical Support & Services
✅ Expert Material Selection Consultation
Our engineering team provides tailored guidance to match the right silicon nitride ceramic material and fixture specifications to your wafer handling requirements.
✅ Custom Processing Solutions
We offer precision machining of fixture dimensions, slot geometries, and surface finishes to meet your exact equipment specifications.
✅ Full Quality Assurance Documentation
Every fixture comes with detailed inspection reports and material certification, ensuring traceability and compliance with SEMI standards.
Advanced Ceramics
The advanced ceramic family encompasses a variety of materials with distinct properties, each of which has been specially designed for specific application scenarios.
Ceramic Materials
Alumina Ceramics (Al₂O₃)
Alumina is the most widely used advanced ceramic material, offering excellent electrical insulation, high hardness, and good wear resistance. It can operate at temperatures up to 1700°C, making it suitable for a wide range of industrial applications.
